canpac Valkyrie

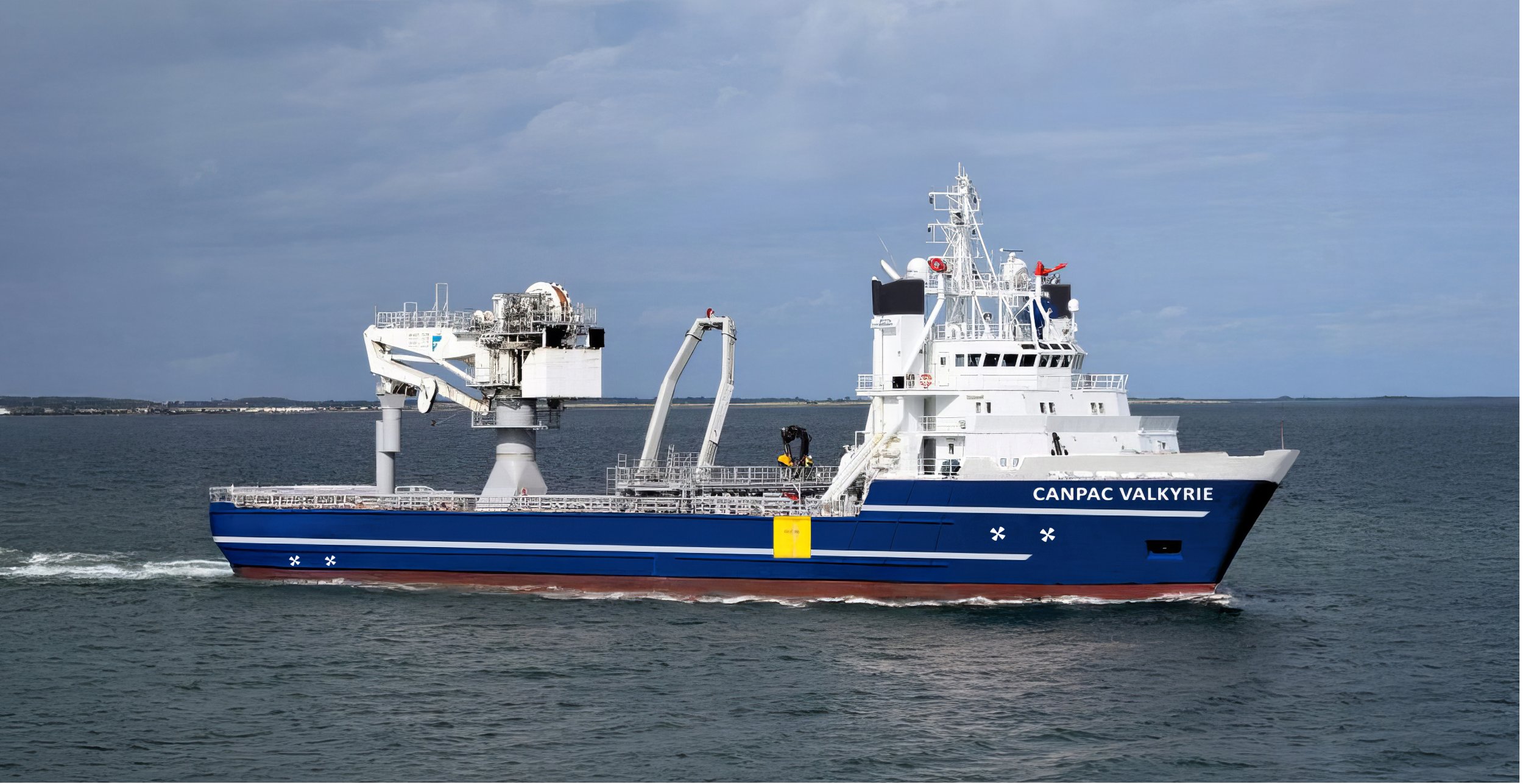

The Canpac Valkyrie is an 87m DP2 DNV Ice Classed Multipurpose supply vessel fitted with a 60-ton Active Heave Compensated crane, 45-ton A-frame and deck capacity of 2380 tons. The Valkyrie is our most capable vessel, working worldwide on cable burial projects, deep-sea ROV campaigns, and coastal cable lays. It can accommodate up to 44 people in support of scientific research and installation projects.
-
Length o.a. 87.10 m
Length b.p. 74.30 m
Breadth mid. 17.50 m
Depth Mld. 7.30 m
Draft Max 6.13 m
Design Draft 6.20 m
-
Det Norske Veritas +1A1 Supply vessel DYNPOS(AUTR) E0 Ice(C)
SF BIS Dk(+) HL(2,5) T-MON PMS OILREC ISM LFL
-
Deck Measurements 57.00 m x 14.60 m (817m2)
Deck Cargo Capacities 2380 Tonnes
-
Tonnage 2775 GRT
Deadweight 3750 T summer DWT
-
60t AHC Subsea Crane - TTS 60t AHC knuckle boom crane
Main Winch 60t @ 15m
Main wire 2000m
Aux Winch 15t @ 23m (man riding)
Aux wire 207m
A-frame - 45t SWL (22.5t man riding)
Suitable for Hyperbaric Rescue
Option for AHC winch
Marine Crane - HIAB Seacrane 2013
Knuckleboom Telescoping
2000kg at 6.5m
Titan TC3 Winch
125m length winch wire
-
Anchor Chain: 10 shackles SB 9 shackles PS
Anchors: 3 off SPEK type (2 service + 1 Spare)
Anchor Windlass: Hydraulic combined windlass mooring winch
Capstans: 2 off 10 tonnes combinesbollards/capstans positioned SB and PS aft.
Deck Cranes: 1 off hydraulic pedestal mounted telescopic crane. 2 tonnes at 10m outreach. Make: Hydralift
Tugger Winches: 1 off 10T Norwinch. 1 off 16.4T Norwinch
-
Total number of beds: 32 x beds
Total number of cabins: 15 x cabins
Single cabins: 4 x single cabins
Double cabins: 6 x double cabins
Multiple cabins: 2 × 6 berths. 1 × 4 berth
Office: 1 x office
Hospital: convertible hospital as required
Other: Messroom, Day room, Gymnasium, Laundry, Galley, Dry Provision, Cooling, Freezing Room
Optional max POB: 44 x beds
-
Canpac can outfit the vessel with our full suite of cable lay equipment including 17-ton tensioners, 1500mt - 2500mt turntables, cable highways with 4.2m MBR, 4.2m chutes, cable ploughs, trenchers and work class ROV’s rated to 6000m.
