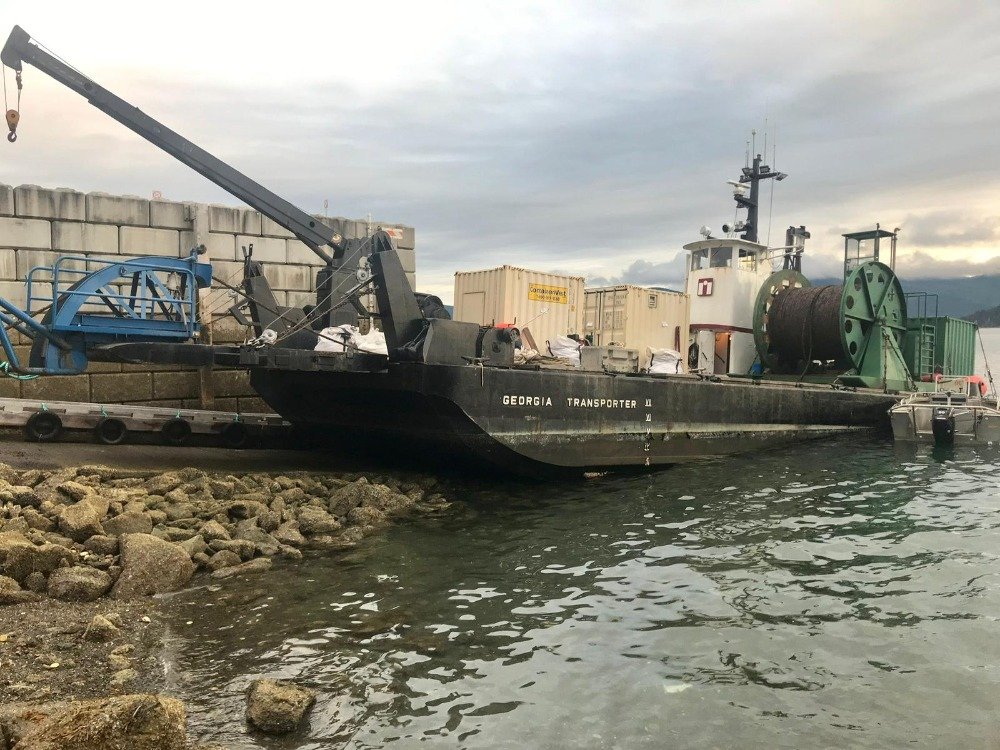

Georgia Transporter
The Georgia Transporter is a coastal self-propelled landing craft barge designed for efficient and versatile cargo and personnel transport. Its self-propulsion capabilities eliminate the need for tugboats, offering significant cost savings in transport operations. The vessel has a robust design that is capable of handling varied terrain and conditions. It is also well suited for diving, ROV, light salvage, and transport operations along the Pacific Coast. It's shallow draft allows for shallow water access, making it suitable for a range of waterways and landing sites.
-
Length, overall: 24.3 m / 80 ft
Breadth, molded: 8.5 m / 28 ft
Displacement (light / loaded): 120 / 289.65 Tonnes
Draft (light / loaded): 2.0 m / 2.28 m
Accommodation: 5
Fuel Capacity: 45,000 litres
Deck Cargo Capacity: 115 tonnes
-
Deck Crane: 10 t at 6 ft, 1 t at 40 ft.
Optional Cable Laying Gear: Cable Winder (9450m of 50.8mm 2290m of 101.6mm) Bow Deploying Sheave
Anchor Systems & Winches
Dive System
Work and Observation Class ROVs
-
Item Engines/BHP: 2 x Cat 3306/300
Propulsion: Twin screw
Generators: Isuzu (1 x 25kw / 1 x 10kw)
Speed: 8 knots (@ 1.4 t/day)description
-
Vessel Type: Cargo Vessel
Builder: McKenzie Barge and Marine Ltd.
Official Number: 320252
IMO Number: 6409002
Flag: Canada
Owner: Canpac Marine Services Inc.
Port of Registry: Vancouver, BC Gross
Tonnage: 142 t
download our Georgia Transporter spec sheet:
