canpac valour

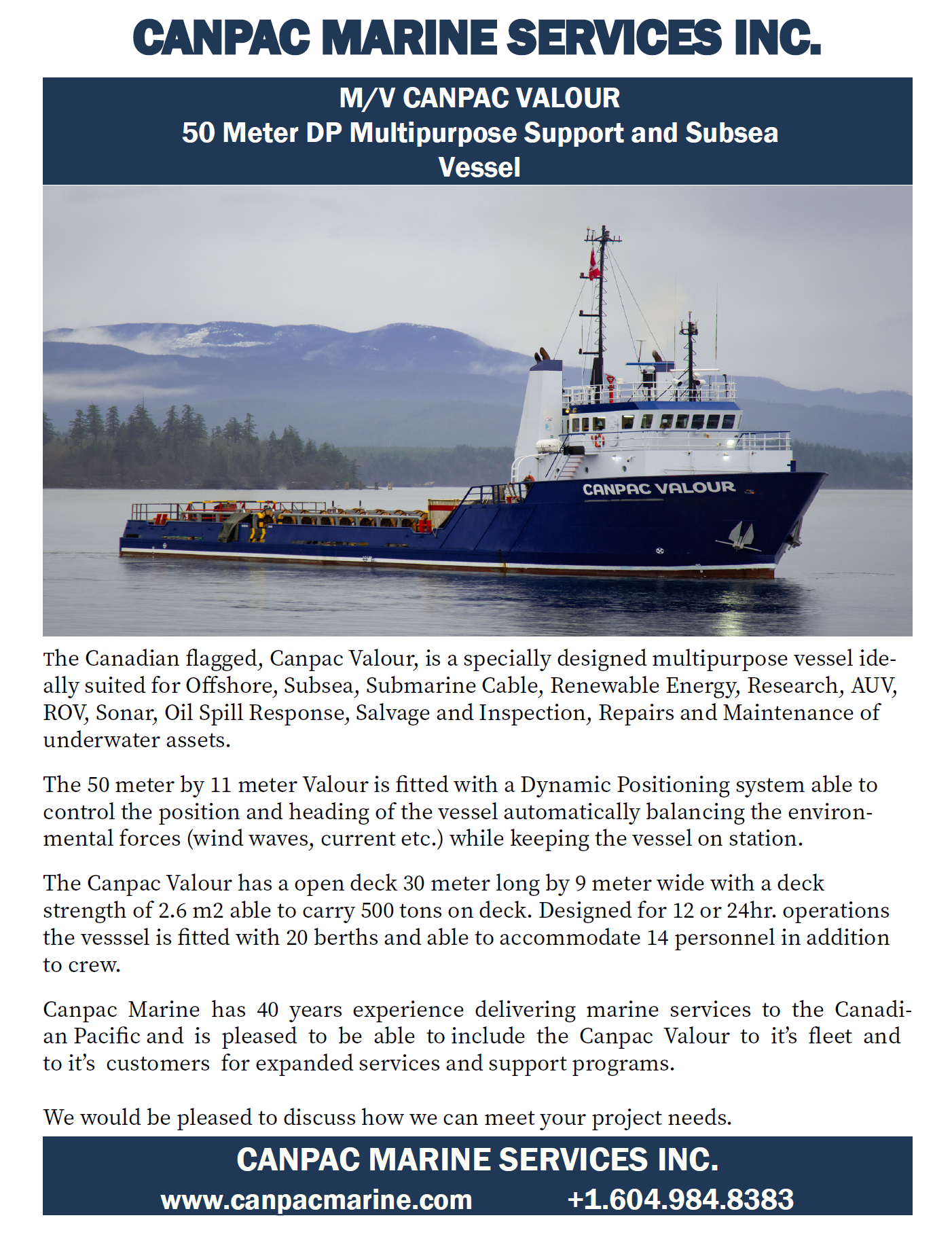

The Canadian flagged, DNV classed Canpac Valour, is a specially designed multipurpose offshore supply vessel ideally suited for Offshore/Nearshore scientific work, Submarine Cable deployment and repair, Renewable Energy projects, Ocean Research, AUV, ROV deployments, advanced cluster Sonar data acquisition, Oil Spill Response, Salvage and Inspection, Repairs and Maintenance of underwater assets.
The 50 meter by 11 meter Valour is fitted with a Dynamic Positioning system able to control the position and heading of the vessel, automatically balancing the environmental forces (wind waves, current etc.), while keeping the vessel on station.
The Canpac Valour has a open deck 30 meter long by 9 meter wide with a deck strength of 2.6 m2 able to carry 500 tons on deck. Designed for 12 or 24hr. operations the vesssel is fitted with 20 berths and able to accommodate 14 personnel in addition to crew.
-
LENGTH OVERALL 164 ft 50 m
LENGTH BP 154 ft 47 m
BEAM 32 ft 11 m
DEPTH 12 ft 4 m
LIGHT DRAFT 8 ft 2 m
LOADED DRAFT 10 ft 3 m
SUMMER FREEBOARD 2 ft 0.7 m -
DRILL WATER 50,000 USG 189 m³
FUEL 40,000 USG 151 m³
LIQUID MUD 2,150 BBLS 342 m³
POTABLE WATER 8,400 BBLS 32 m³
DEADWEIGHT 650 LT 662 MT -
TONNAGE 500 LT 509 MT
LENGTH 110 ft 34 m
WIDTH 30 ft 9 m
CLEAR AREA 3,300 ft² 307 m² -
GRT 80 US Tons 0 US Tons
NRT 498 Tons 149 Tons -
MAIN ENGINES 2 CAT 3508 B
BRAKE HORSEPOWER 1900
REDUCTION GEARS TD MG 6690-00SC
GEAR RATIO 3.21:1
PROPELLERS HS HTB-4B 64x55
RUDDERS Two Flat Plateyoked
AUXILIARY GENERATORS 2 Cummins 6CTA8.3-DM@ 150KW
BOW THRUSTER 450hp Tunnel
STERN THRUSTER 450hp Tunnel
LIQUID MUD CIRCULATION Magnum 5x4x14 -
DRILL WATER 400 USG/min @ 80 ft 91 m³/HR @ 24 m
POTABLE WATER 400 USG/min @ 80 ft 91 m³/HR @ 24 m
FUEL OIL 400 USG/min @ 80 ft 91 m³/HR @ 24 m
LIQUID MUD 700 USG/min @ 150 ft 159 m³/HR @ 46 m -
CABINS/BERTHS 6/20
OFFICERS 2
CREW 2
MESS 10 -
DEPTH RECORDER 2
DP DNV Approved KONGSBERG DPS-1
RADAR(S) 2
SSB 1
INTERNET, E-MAIL GPRS 4G, Fleet One
AUTOPILOT KONGSBERG
INSTRUMENTATION VHF, Gyro, Compass, Weather Fax
NAVIGATION Nobeltec TIMEZERO (real-time display to DPO, Pilot and Cable
Supervisor stations) -
EXTERNAL FIRE FIGHTING 1000 GPM
NUMBER OF MONITORS 1 -
CLASS DNV DPS-1, DP1 A-1
FLAG Canadian
YEAR BUILT 2006
OFFICIAL NUMBER 845018
BUILDER Master Boat Builders Inc. -
MAXIMUM SPEED 12 knots
CRUISING SPEED 10 knots
MAXIMUM FUEL CONSUMPTION 99 USG/Hr 9 m³/24 Hrs
CRUISING FUEL CONSUMPION 77 USG/Hr 7 m³/24 Hrs
DYNAMIC POSITION FUEL CONSUMPTION 38.5 USG/Hr 3.5 m³/24 Hrs -
DECO Chamber 20’ Conex with fully independent 54-inch DDC
Portable Dive Container 20’ Conex, with HalcyonDive Systems gear for 4
Divers
Portable Deck Generator 150 Kw diesel, 460v, 60Hz, 3-phase w/Hubble
4100R7W cable connector
Mixed Gas Dive system NITROX/TRIMIX Maker, Bauer HP Compressors,
Boost pumps and Twin-tank/Rebreather support
equipment
Observation and Work Class ROVs Work Class Electro-Hydraulic ROV, (1000 meter
working depth), Obsevation Class ROV, (300 meter
working depth), Operations and Workshop containers,
(8ft x 8ft x 20 ft, heated/air conditioned)
4-Point Anchoring System In addition to DP1 positioning, Canpac Valour features
a full 4-point anchoring system for up to 300 meters
depth
Emergency Boat w/Davit SOLAS 4m Emergency Boat with 40HP outboard
Aluminum Skiff 18 ft center console work skiff with 70HP outboard,
chart plotter
Deck Crane 5 ton Hiab Sea Crane
